Olympus CX23 Microscope

Olympus CX23 Biological Microscope

Specifications

• Model: CX23LEDRF (S1/S2) / CX23RTFS2

• Optical System: Infinity optical system

• Illumination: Built-in LED (0.5W), 20,000-hour lifetime

• Stage Size: 174 × 89 mm

• Travel Range (X × Y): 76 × 30 mm

• Eyepiece: 10× (FN 20), anti-fungal

• Interpupillary Distance: 48–75 mm

• Objectives: Plan Achromat (4×, 10×, 40×, 100× oil)

• Condenser: Abbe NA 1.25 with iris diaphragm

• Body Material: Aluminum die-cast frame

• Weight: Approx. 5.9 kg

• Dimensions: 198 mm (W) × 398 mm (D) × 386 mm (H)

Reliable and Ergonomic Design for Education and Research

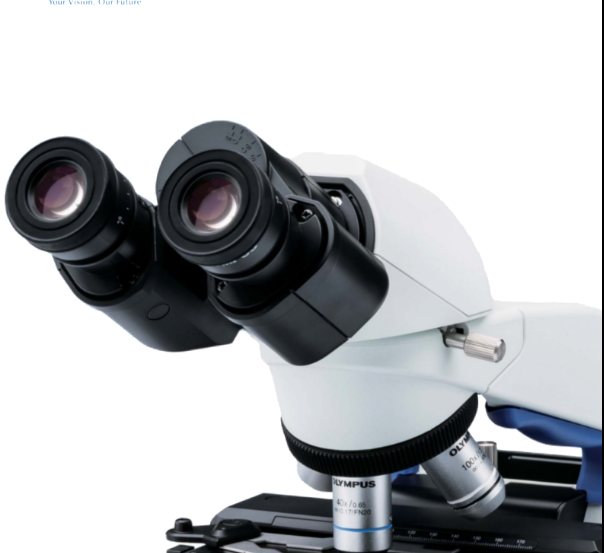

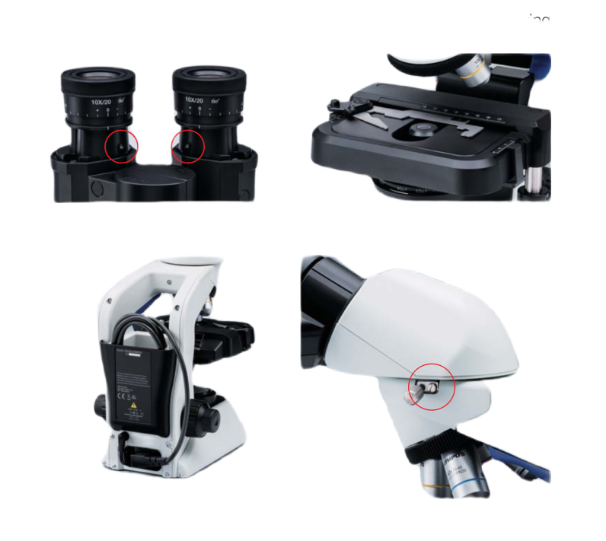

The Olympus CX23 Biological Microscope is a high-performance, user-friendly instrument designed to bring professional-grade microscopy to classrooms, laboratories, and clinical environments. Built with an ergonomic frame and a lightweight design, it offers exceptional stability and comfort for extended use. The microscope’s angled arm and ergonomic grips make it easy and safe to carry, while fixed eyepieces and a locking pin provide secure handling and transport.

Outstanding Optical Performance for Clear, Accurate Observation

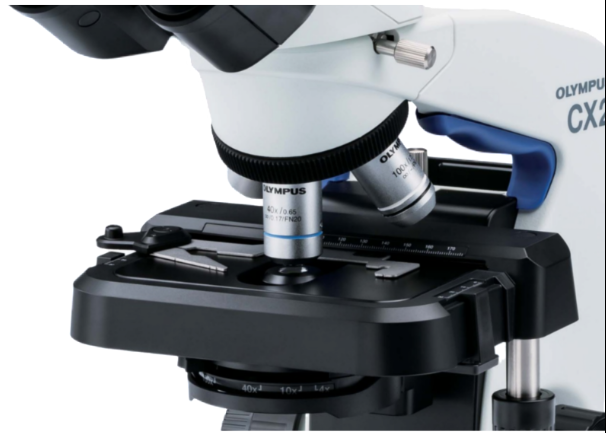

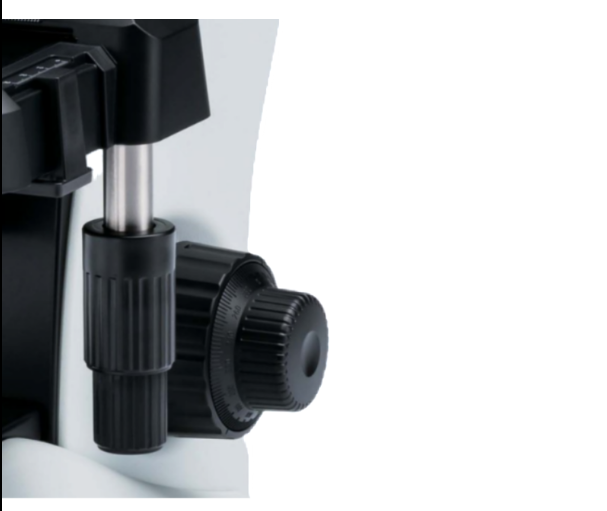

Engineered with plan achromat objectives and a wide 20 mm field of view (FN 20), the CX23 delivers sharp, flat, and vivid images across the entire field. Its daylight-balanced LED illumination preserves the natural colors of specimens—especially valuable for HE-stained samples—and provides an impressive 20,000-hour lifetime, reducing maintenance costs. The Abbe condenser (NA 1.25) and precision coaxial focusing knobs allow users to achieve smooth, accurate focus adjustments for precise results every time.

Durable Construction and Safety Features

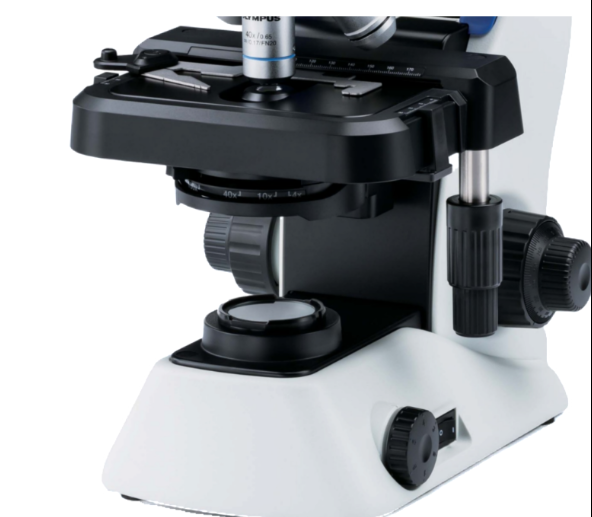

Crafted from a die-cast aluminum frame with protective plastic covering, the CX23 is both sturdy and lightweight, weighing only approximately 5.9 kg (13 lbs). Its rackless stage and stage cover enhance stability and safety during use, while the focus lock mechanism protects slides and objectives from accidental damage. The built-in security slot allows for anti-theft cable attachment—ideal for classroom or shared lab settings.

Convenient Storage and Easy Maintenance

Designed with practicality in mind, the CX23 includes a rear cable storage compartment for neat organization. Its anti-fungal optical components and smooth surfaces ensure easy cleaning and long-term reliability, even in humid environments.
